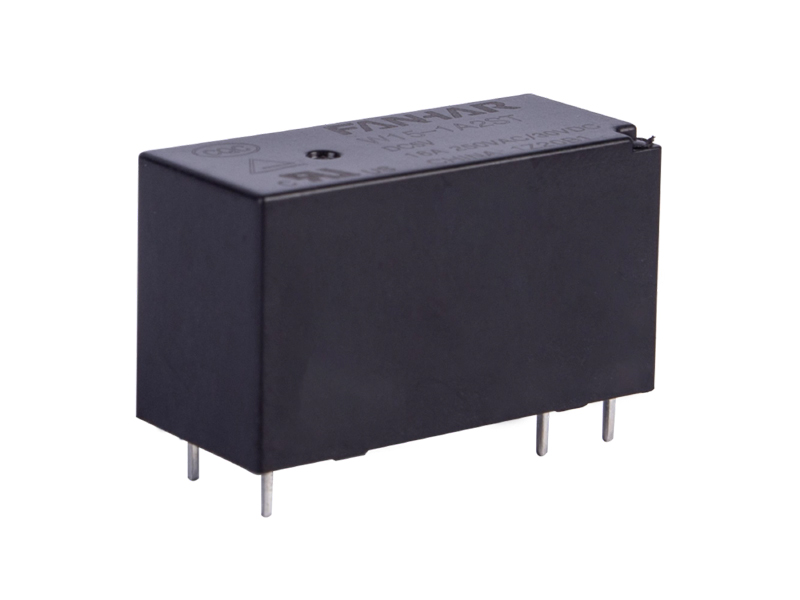

power relay
● 20a switching capability

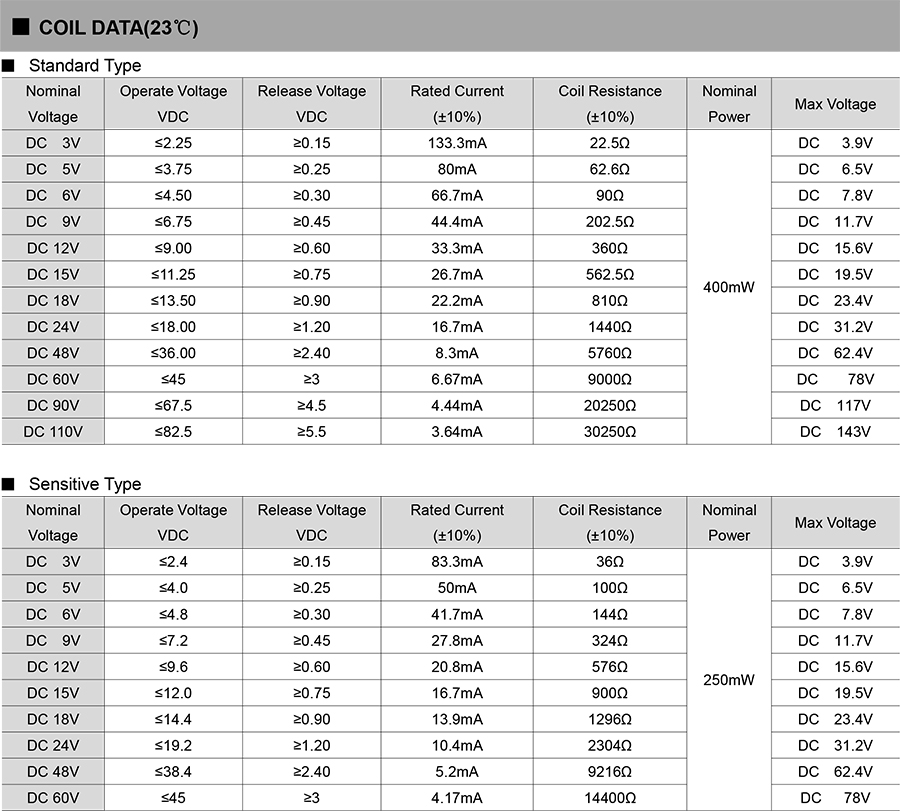

● provide high sensitive type,coil power is 250mw

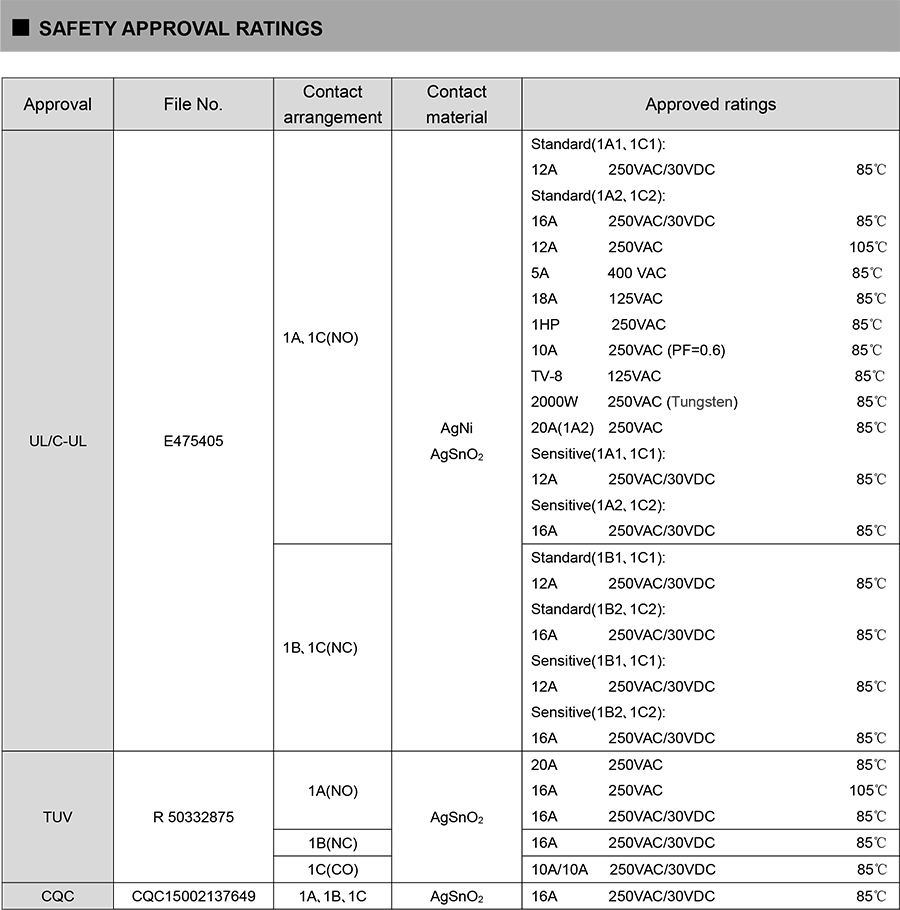

● provide the product meet the standards of
iec60335-1､iec60730-1､iec62368-1
● breakdown voltage(between coil and contacts):5kv
● creep age distance and air distance≥15mm
● products with operating temperature of 105℃ are available
● ul insulation system:class f
● environment- friendly product(rohs compliant)

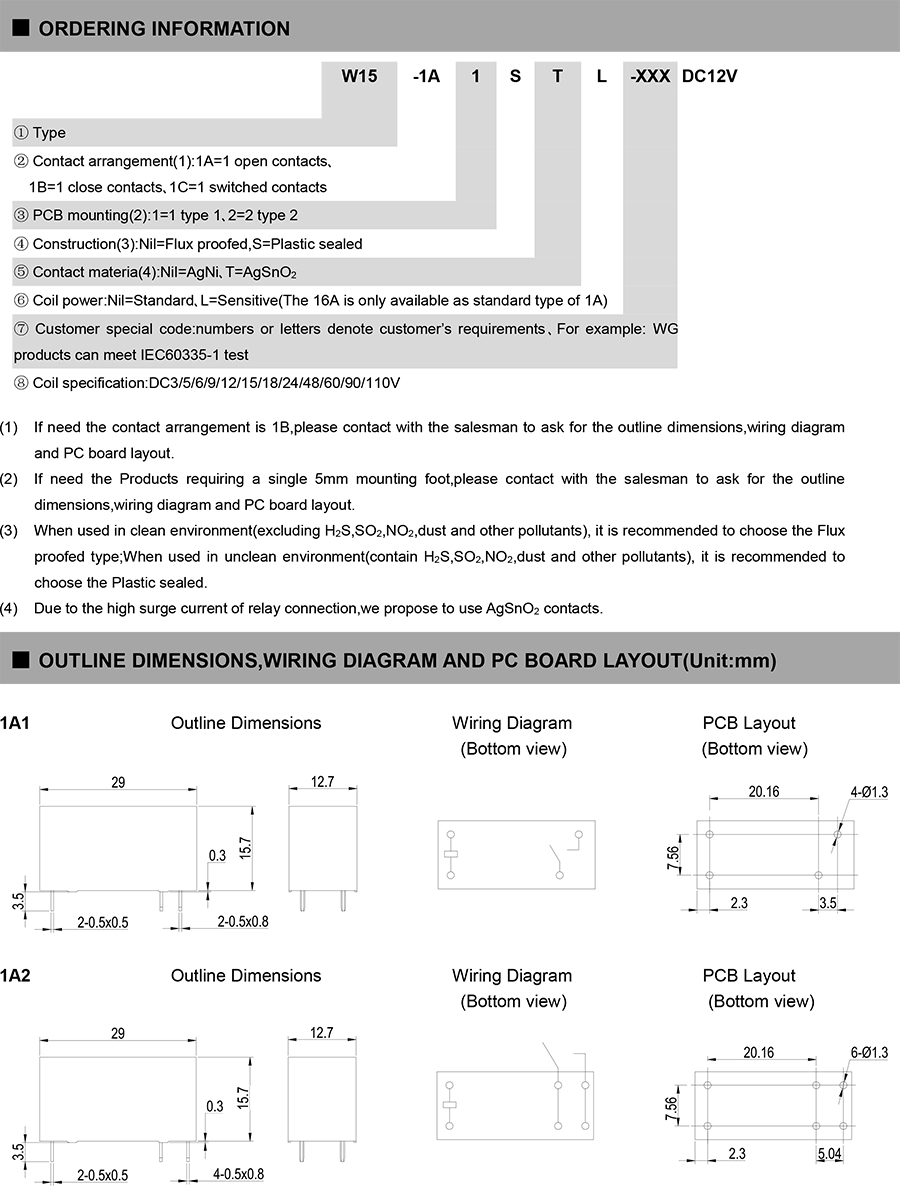

● outline dimensions:(29.0×12.7×15.7)mm
● main application:home appliance､smart home､industrial control
