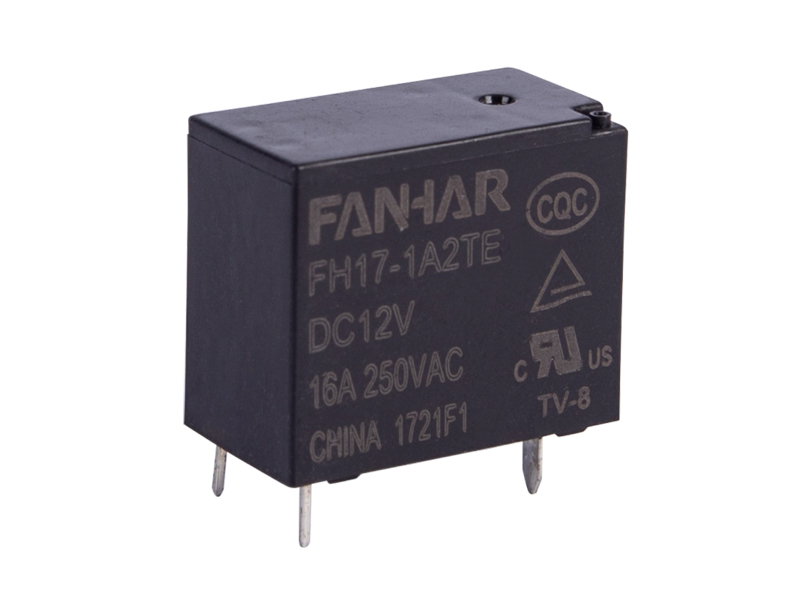

power relay
● 16a switching capability
● provide the product of highly efficient,magnetic circuit for high sensitivity:200mw
● breakdown voltage (between coil and contacts): 4kv
● creep age distance and air distance are greater than 6.5mm
● we can provide the product with ambient temperature is 105℃
● ul insulation system:class f
● environment-friendly products (rohs compliant)

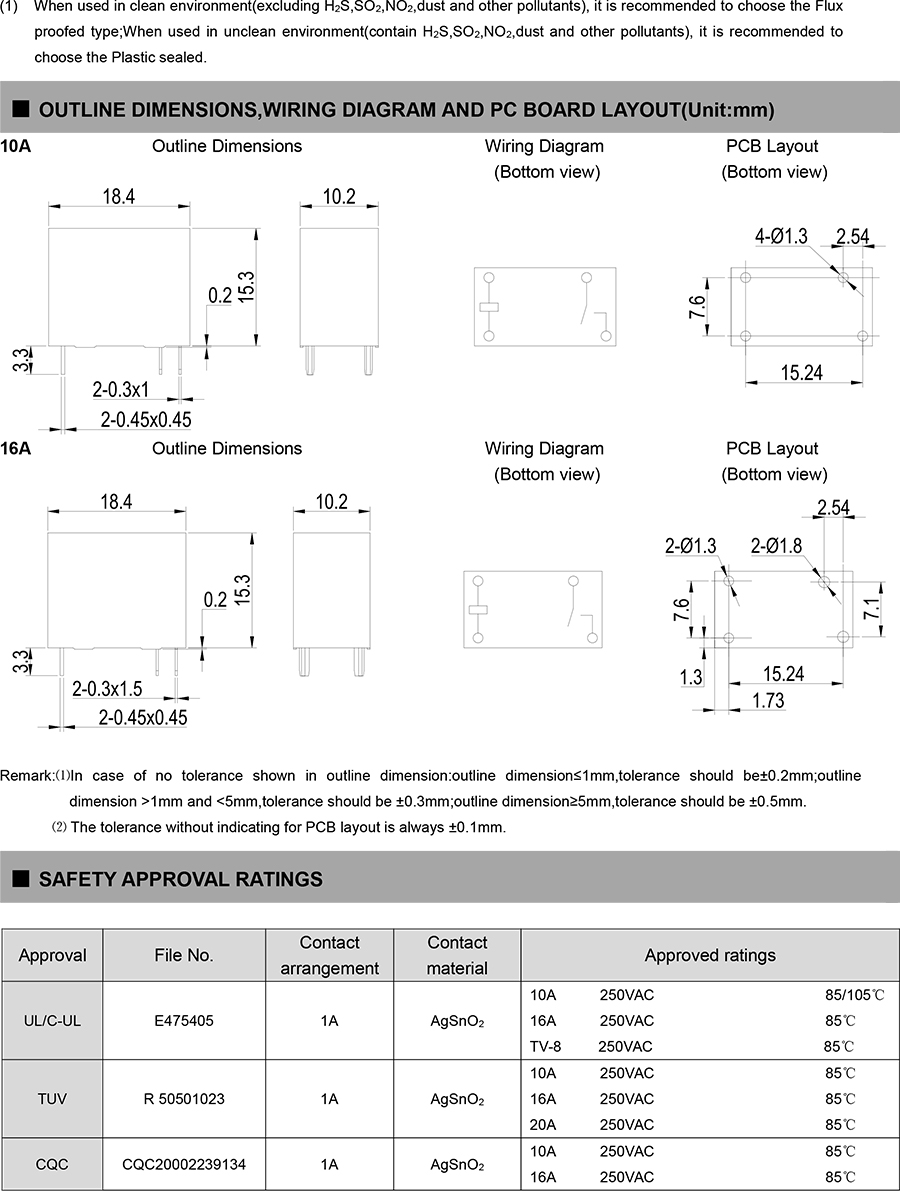

● outline dimensions:(18.4×10.2×15.3)mm
● main application:smart switches, smart sockets, home appliance
