pcb latching relay
● 120a switching capability
● single coil and double coils are all available
● double contacts structure
● can be customized the manganese copper shunt, transformer and other external accessories according to customer demand
● breakdown voltage (between contact and coil):4kv
● meet the standard of iec62055-31:2005 uc3
● environment-friendly product (rohs compliant)

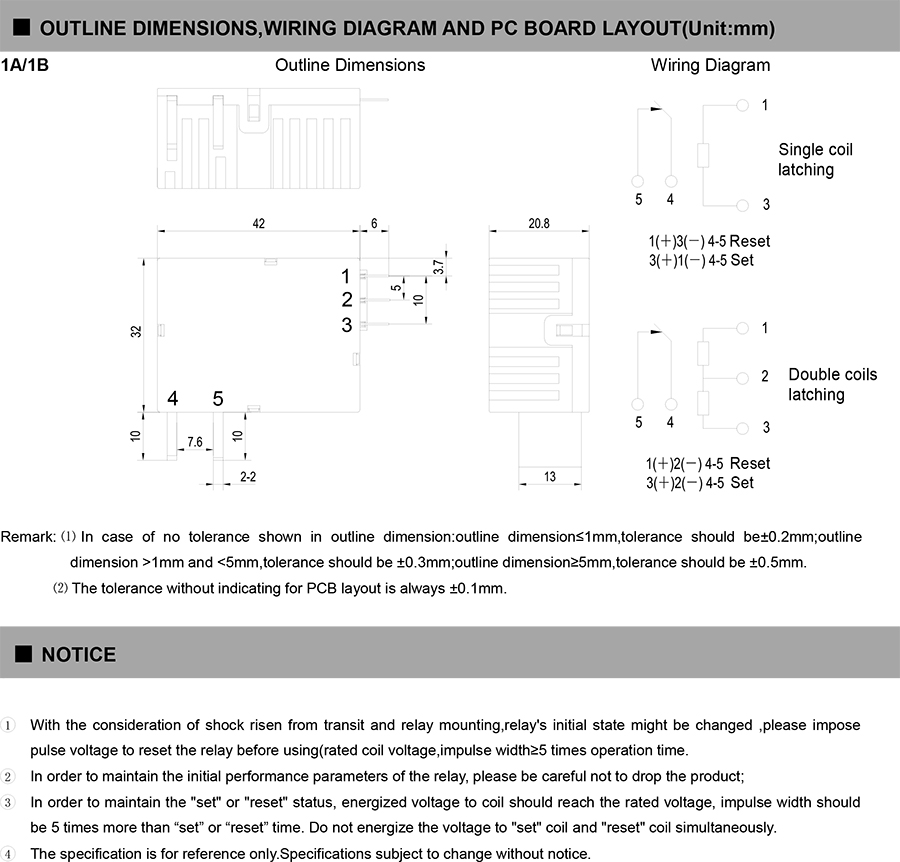

● outline dimensions:(42.0×32.0×20.8)mm
● main application:smart meter､power supply
