electric latching relay
● 120a switching capability
● it meets the dc load capacity of dc60v and 35a
● single coil and double coils are all available
● contact on and off can be controlled by manual control switch
● provide the contact gap of the product is ≥ 3mm,it meets the europe standard of vde0126 from europe
● breakdown voltage (between contact and coil):4kv
● environment-friendly product (rohs compliant)

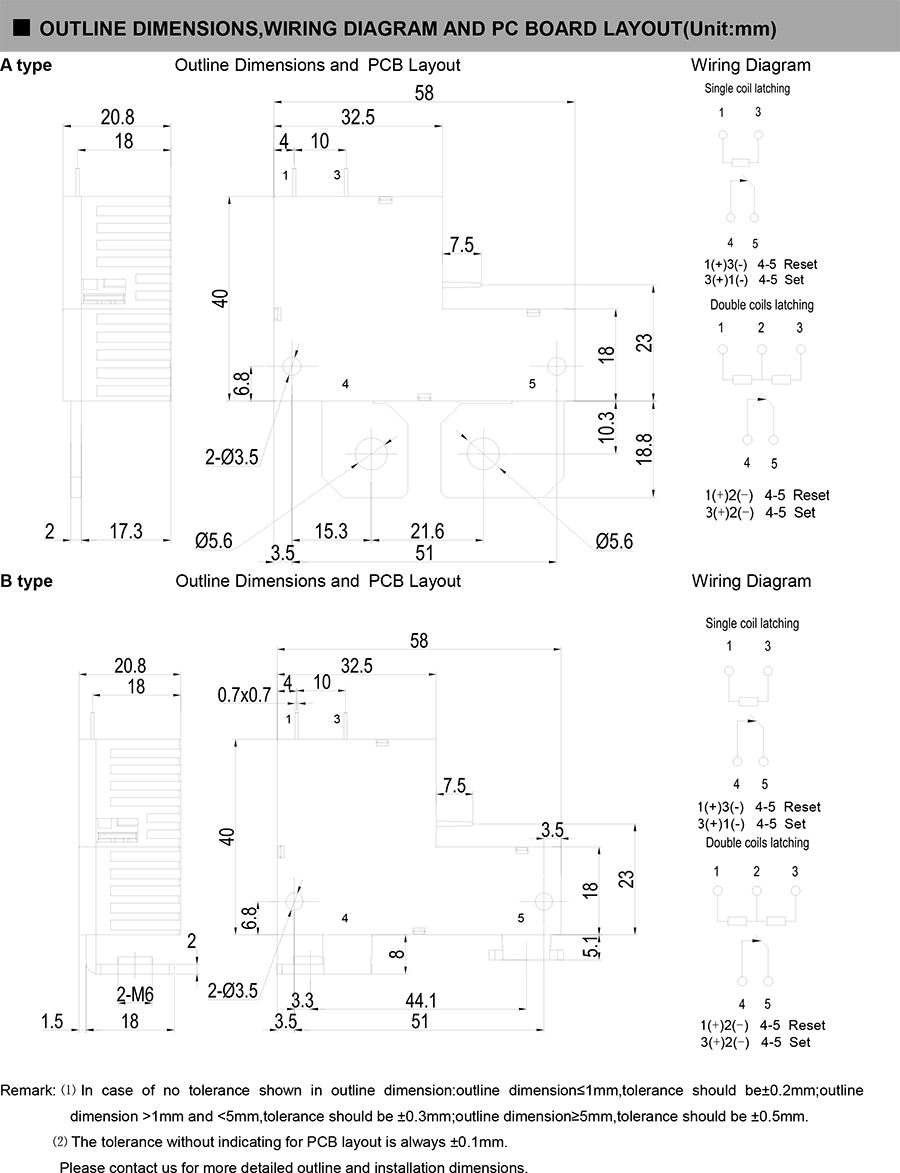

● outline dimensions:(58.0×40.0×20.8)mm
● main application:new energy and pv industry(photovoltaic new energy)､industry control
